Stopwatch in countdown mode within the segment prior to the synchronization point should work. However the countdown mode only works if the stopwatch has a well defined range, specified by start and end points.

I think in your case you want to do the following:

  • Go to the begining of the segment.

  • Add the stopwatch object on the first frame.

  • Right click the stopwatch and choose "Start"

  • Move forward in time up to the synchronization point (shortcut: F8).

  • Right click the stopwatch and choose "Stop".

  • Right click the stopwatch again and choose "Countdown".

17 Reply by inorkuo

  • inorkuo
  • Member
  • Offline
Faultyclubs wrote:
joan wrote:

I understand that there is now a missing feature of being able to record action in "pre-roll" fashion and considering various options.

Thanks Joan.   Yes, the removal of the recording delay feature, or the "pre-roll" capability as you call it,  is causing the problem.  I'm glad to see it's being worked on.   Sounds like you have a bigger picture in mind so it will be interesting to see what you come up with.   If i can provide input from the golf perspective I'm  happy to do that.

i'm glad to hear that you are working on it. there are several of us golfers using kinovea to do swing analysis and it's a really great program. thanks.

here's a link to a golf sim forum where we are talking about how to use kinovea for golf swing analysis if you are interested.
http://golfsimulatorforum.com/forum/pro … -s-awesome

18 Reply by joan

  • joan
  • joan
  • Admin
  • Online

Just to clarify, I'm not currently actively working on this. The top priority for 0.8.26 is to be able to export angle tracking timelines and update the Basler module to work with Pylon 5.

19 Reply by Joop

  • Joop
  • Joop
  • Member
  • Offline

In version 8.23 I could save the movie with slowmotion factor. In the newest version, I can't. Is it moved to another menu?

Joop

20 Reply by mgerner

  • mgerner
  • Member
  • Offline

Hi,

I'm having issues with this experimental version and my network camera. I've got this IP cam that I use with the url http://ip-address/now.jpg?snap=spush. However, when you save this configuration it deletes the characters from the ? onwards. Also, it seems impossible to use the ?-part with MJPEG.

Any ideas?

Thanks,
Marc

21 Reply by joan

  • joan
  • joan
  • Admin
  • Online
Joop wrote:

In version 8.23 I could save the movie with slowmotion factor. In the newest version, I can't. Is it moved to another menu?

Yes it is a regression, it hasn't moved to another menu.

22 Reply by joan

  • joan
  • joan
  • Admin
  • Online
mgerner wrote:

I've got this IP cam that I use with the url http://ip-address/now.jpg?snap=spush. However, when you save this configuration it deletes the characters from the ? onwards.

Thanks for the report. The parsing of the camera URL was indeed eating the "query" part. I just fixed it and should work again in the next version.

23 Reply by joan

  • joan
  • joan
  • Admin
  • Online
getpa wrote:

when saving the analysed video files, the option to apply the slow motion on the video is not available anymore.

Joop wrote:

In version 8.23 I could save the movie with slowmotion factor. In the newest version, I can't.

This should be fixed in the next version.

24 Reply by joan

  • joan
  • joan
  • Admin
  • Online

@Faultyclubs & @inorkuo,

I looked into the issue of recording with delay today and found a way to have it back without disrupting the architecture.
I still think the default option should be the optimized path from camera to disk, to ensure the most correct timing possible in the default case.

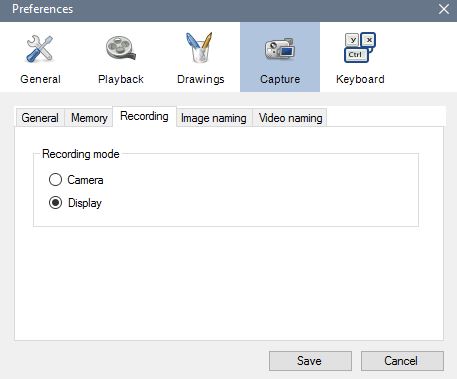

There will be a new option in the preferences to switch that "Recording mode".

In "Camera" mode it will record the current image coming from the camera. In "Display" mode it will record the current image displayed on screen. This second mode will thus take delay and mosaic view into account. It will not include any drawing overlays for now.

I'm not sure the labels "Camera" and "Display" are descriptive enough to intuitively understand what the options are doing, if someone can find a short and to-the-point explanation for each, that would be welcome.

http://www.kinovea.org/screencaps/0.8.26/0826-recordingmode.jpg

25 Reply by joan

  • joan
  • joan
  • Admin
  • Online

Another thing that will come into play is that the option defining the memory allocated for the capture buffers is no longer limited to 1GB. The max setting will be computed from the available physical memory.

This should allow much longer delays on x64 systems with more RAM.

26 Reply by Faultyclubs

  • Faultyclubs
  • Member
  • Offline

That's great, thanks!

Possible explanation phrase might be:

Recording Mode:

- Camera (Record raw input stream)
- Display (Record displayed data stream)

27 Reply by mgerner

  • mgerner
  • Member
  • Offline
joan wrote:

Thanks for the report. The parsing of the camera URL was indeed eating the "query" part. I just fixed it and should work again in the next version.

Thanks Joan, good to know! Is there any news on go-live of the new experimental version?

28 Reply by alain.broft

  • alain.broft
  • Member
  • Offline

Dear all,
Did someone find the solution of tracking custom tools? I have made my own xml's but none of the custom tools allow me to configure and track in such a way that I can export it to Excel.
Please advice on this.
Kind Regards,
Alain

29 Reply by dangthuhuongvn

  • dangthuhuongvn
  • Member
  • Offline

I got the problem in just the first step, the video can't opened. Can sbd helps me?
http://i127.photobucket.com/albums/p146/chichbongdien/Capture_zps7juzsqrm.png

30 Reply by joan

  • joan
  • joan
  • Admin
  • Online

Hi dangthuhuongvn,
It could be linked to the Windows locale used for non-Unicode programs causing an issue when loading the video decoding library. There is an open bug submitted a while ago of a similar thing. Most people don't have the issue but on some systems it causes this problem.

Is your Windows in Vietnamese? Can you see thumbnails for images (.gif, .png, .jpg, etc.) they use a different decoder, it would confirm the origin of the problem.

Please check the following setting in Windows: Control panel > Region > Administrative > Language for non-Unicode programs. What is the value of this?

Try to change this to match the language of your system if it's set to English. This is mostly to test the hypothesis, this may have side-effects on the functionality in other programs so keep that in mind if this fixes the issue but you see bugs arising in other programs.
