The Overview function is a summary image of the video.
It samples images from the video at regular interval and creates a composite picture where you can see the motion at a glance.
To enable Overview, toggle the menu under Motion > Overview.
Set the number of images to use for the composition and the orientation of the motion.
The default orientation is left-to-right, which means the first image of the series will be in the top left corner and the last one in the bottom right corner.

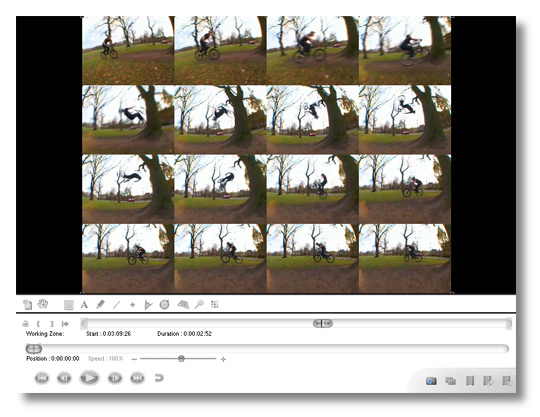

Result of the Overview function. |
When you enable the Overview, all playback controls are disabled.
You can save the Overview by right-clicking the image and using the menu Save the Current Image to File.
To return to normal display, toggle off the menu Motion > Overview.
To close the Overview and return to normal display, you can also use the Close button of the screen .
