Measuring positions and distances

Introduction

To measure positions and distances on video images, it is necessary to first perform calibration.

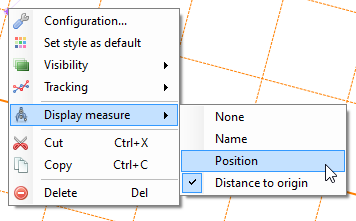

To display a measurement right click the object and choose an option under Display measure.

../_images/menu.png

The unit of distance is the unit used during calibration.

Points

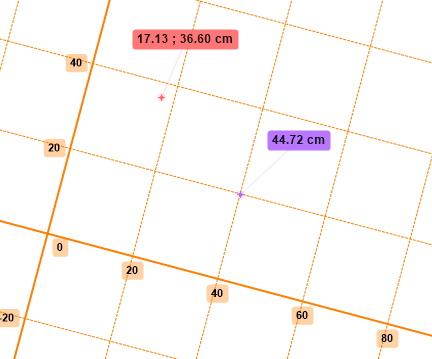

The marker tool can be used to measure the position of a point in the current coordinate system or its distance to the origin.

../_images/marker.png

Lines

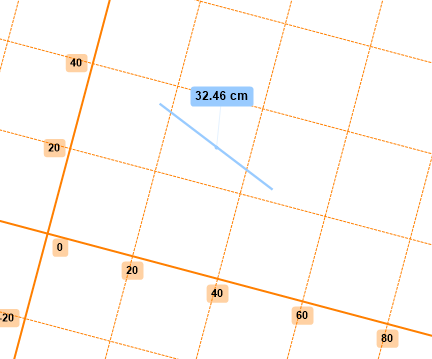

The line tool can be used to measure the distance between two points.

../_images/line2.png

Circles

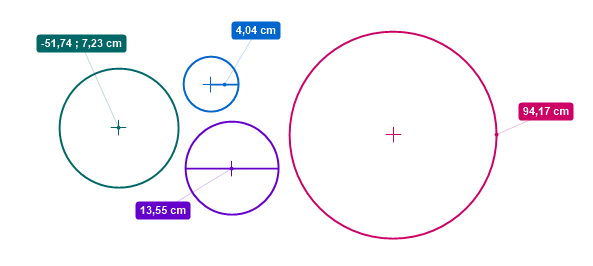

The circle tool has display options to show the center position, radius, diameter, and circumference of the circle.

../_images/circle1.png
